General information |
|
Motorcycle name
|

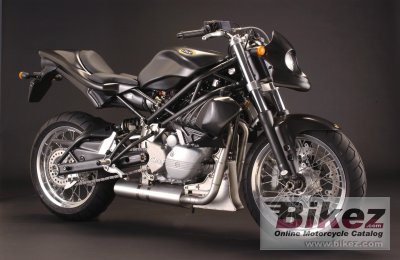

CR&S VUN Road |
|
Year model
|
2011 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
652.0 ccm (39.79 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Bombardier-Rotax / CR and S type 654 |
|
Effect
|
53.6 HP (39.2 kW)) @ 7000 RPM |
|
Torque
|
58.9 Nm (6.0 kgf-m or 43.4 ft.lbs) @ 5000 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
100.0 x 83.0 mm (3.9 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated CR and S/Walbro/Dell’Orto ignition/injection system, 52 mm throttle housing, twin injectors, twin spark |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Walbro integrated |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate |
|
Driveline
|
O-ring chain |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
Stainless steel catalytic exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubes and machined light alloy plates compound |
|
Front suspension
|
Tele-hydraulic fork with 46mm diameter rods |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Oscillating swingarm, single shock absorber |
|
Rear wheel travel
|
128 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Single disc. Four opposing pistons radial caliper with 4 pads |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Floating caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
135.0 kg (297.6 pounds) |
|
Power/weight ratio
|
0.3973 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
820 mm (32.3 inches) If adjustable, highest setting. |
|
Overall length
|
1980 mm (78.0 inches) |
|
Overall width
|
740 mm (29.1 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1368 mm (53.9 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
|
Instruments
|
Speedo, revs counter, odometer, clock and water, oil pressure, side stand, neutral, indicators, full beam, reserve, excessive revs, battery, servicing lights |
|
Comments
|
CR and S is an abbreviation of Cafe Racers and Superbikes. The VUN is available in a tuned-up version not certified for road use and a depowered version. |
