| CR&S' profilation of this bike |
| The best racing components available today, a powerful and easy to handle engine, an even more extreme weight. With the possibility of implementing these features again. A motorbike designed using the direct experience gained in competitions by CR and S, virtually unbeatable on the most frequently used bendy circuits. A preparatory motorbike, but able to generate enthusiasm also in the most expert riders. |
|
General information |
|
Model
|

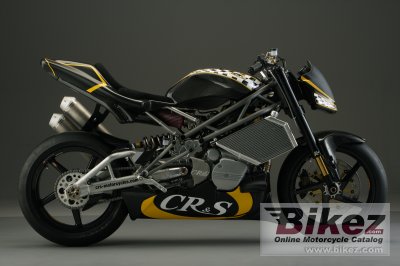

CR&S VUN PPP Evoluzion |
|
Year model
|
2012 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
720.0 ccm (43.93 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
100.0 x 83.0 mm (3.9 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated CR and S/Walbro/Dell’Orto ignition/injection system, 52 mm throttle housing, twin injectors, twin spark |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple disc wet |
|
Exhaust system
|
Stainless steel /Titanium exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Ceriani racing fork with DLC tubes |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Ohlins racing shock with hydraulic adjustments, spring preload and adjustable offset |
|
Rear wheel travel
|
128 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Marvic Piuma racing cast magnesium five spoke wheels |
|
Seat
|
Neoprene seat |
|
Physical measures and capacities |
|
Dry weight
|
127.5 kg (281.1 pounds) |
|
Weight incl. oil, gas, etc
|
139.0 kg (306.4 pounds) |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
820 mm (32.3 inches) If adjustable, highest setting. |
|
Overall length
|
1980 mm (78.0 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1368 mm (53.9 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Other specifications |
|
Color options
|
White/black/yellow |
|
Starter
|
Electric |
|
Comments
|
Not certified for road use. CR and S is an abbreviation of Cafe Racers and Superbikes. PPP is an abbreviation of Prùnta Per Pista. |
