General moped information |
|
Model name
|

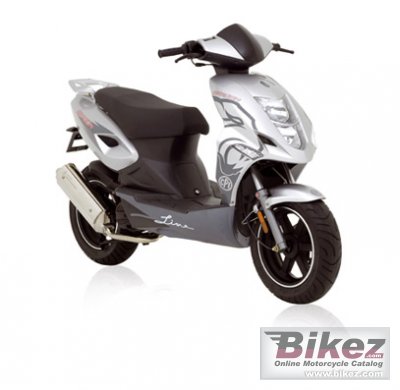

CPI Aragon |
|
Year of manufacture
|
2009 |
|
Type
|
Scooter |
|
Rating
|
2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.2 ccm (3.00 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
3.2 HP (2.3 kW)) @ 5900 RPM |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic telescope fork |
|
Rear suspension
|
Hydraulic suspension, adjustable |
|
Front tire
|
120/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Overall length
|
1790 mm (70.5 inches) |
|
Overall width
|
650 mm (25.6 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Silver, blue, anthrasite |
|
Starter
|
Electric & kick |
|
Comments
|
2 back mirrors, central ignition- steering lock, lockable fuel tank cap, digital
clock, luggage holder, main- stand, crome coated side stand ,, halogen H4 headlight, high- and low beam, helmet box which can be opened through ignition key, LED-direction indicator, alloy rims, luggage carrier.
|
