| Confederate's profilation of this bike |
| Holistic evolution of efforts made to evolve the radial aircraft architecture of our V twin powerplant through the Wraith´s chassis platform architecture was mandated. Perfected balance of proportion and evolutionary brand gestalt were referenced. Greater manufacturing efficiency, fewer parts and fewer vendors were specified. |
|
General information |
|
Motorcycle name
|

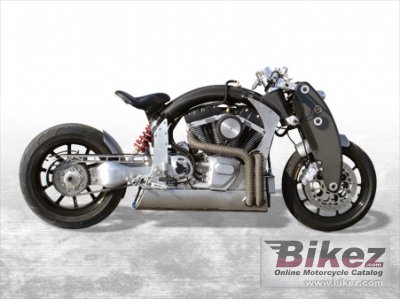

Confederate Wraith B 120 |
|
Year model
|
2007 |
|
Type
|
Naked bike |
|
Rating
|
2.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1966.6 ccm (120.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
130.0 HP (94.9 kW)) |
|
Torque
|
169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) |
|
Bore x stroke
|
104.8 x 104.8 mm (4.1 x 4.1 inches) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Construction 3 load path bearing utilizing aircraft aluminum fuselage with CNC billet aircraft aluminum front and rear bulkheads; Engine as stressed member; Carbon backbone. |
|
Front suspension
|
Penske coil over shock, fully adjustable |
|
Rear suspension
|
Penske coil over shock with cooling reservoir; multi adjustable |
|
Front tire
|
120/60-17 |
|
Rear tire
|
280/55-17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
280 mm (11.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
186.0 kg (410.0 pounds) |
|
Power/weight ratio
|
0.6990 HP/kg |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Optional 5-speed gearbox |
