| Confederate's profilation of this bike |
| We are 100% focused on creating the ultimate street motorcycle experience. From the outset, this has driven our
interpretation of perfect two-wheeled motoring. Real world reaction time will be world class. |
|
General information |
|
Model name
|

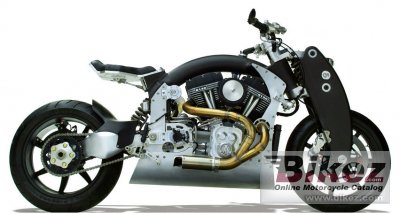

Confederate Wraith |
|
Year
|
2010 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1966.6 ccm (120.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
125.0 HP (91.2 kW)) |
|
Torque
|
176.3 Nm (18.0 kgf-m or 130.0 ft.lbs) |
|
Bore x stroke
|
104.8 x 114.3 mm (4.1 x 4.5 inches) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Confederate design triple load path carbon fiber monocoque. Aircraft grade CNC billet bulkhead, fuselage. Oil in frame. |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
Penske coil over shock, fully adjustable |
|
Rear suspension
|
Penske coil over shock with cooling reservoir; multi adjustable |
|
Front tire
|
120/60-17 |
|
Rear tire
|
280/55-17 |
|
Front brakes
|
Double disc. Bremo, 4-piston |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo, 2-piston |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
176.9 kg (390.0 pounds) |
|
Power/weight ratio
|
0.7066 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Other specifications |
|
Color options
|
Black/grey |
|
Starter
|
Electric |
|
Comments
|
Carbon fiber wheels. Limited production of 250 bikes. |
