| Confederate's profilation of this bike |
| She is graceful in motion, yet potentially brutal. She exudes inner beauty through absolute follow through of truth of concept. |
|
General information |
|
Motorcycle name
|

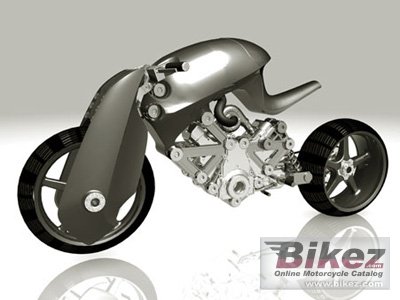

Confederate Renovatio Project |
|
Year model
|
2008 |
|
Type
|
Prototype / concept model |
|
Rating
|
2.8 See the detailed rating of design and look, fun-factor, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1686.0 ccm (102.88 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
135.0 HP (98.5 kW)) |
|
Maximum RPM
|
7800 |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
108.0 x 92.0 mm (4.3 x 3.6 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Sequential fuel injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Exhaust system
|
321 Stainless steel headers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Girder-type aircraft aluminum and titanium multi-link with shock centered on steering axis; Carbon fiber struts. |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
Penske coil over shock, fully adjustable |
|
Rear suspension
|
Penske coil over shock with cooling reservoir; multi adjustable |
|
Front tire
|
120/60-17 |
|
Rear tire
|
280/55-17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
280 mm (11.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
154.2 kg (340.0 pounds) |
|
Power/weight ratio
|
0.8754 HP/kg |
|
Seat height
|
762 mm (30.0 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1524 mm (60.0 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
190 HP optional supercharger engine. |
