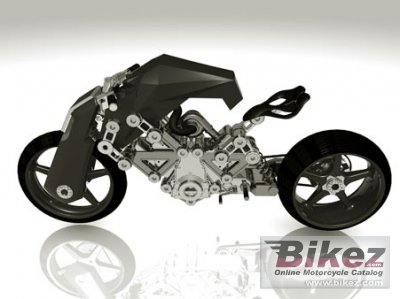

| Confederate's profilation of this bike |
| Conceived by the leader of our conceptual design team, Mr. Ed Jacobs, the motorcycle is at once primitive, bohemian, and yet highly technical. She is skeletal, i.e. she showcases human crafts work. The machine is minimal ; using the fewest pieces, moving parts and systems to accomplish her dynamic mission. |
|
General information |
|
Model
|
Confederate Renovatio Project |
|
Year
|
2007 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1686.0 ccm (102.88 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
150.0 HP (109.5 kW)) |
|
Torque
|
169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) |
|
Max RPM
|
7800 |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
108.0 x 92.0 mm (4.3 x 3.6 inches) |
|
Fuel system
|
Injection. Sequential fuel injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Exhaust system
|
321 Stainless steel headers |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
Penske coil over shock, fully adjustable |
|
Rear suspension
|
Penske coil over shock with cooling reservoir; multi adjustable |
|
Front tire
|
120/60-17 |
|
Rear tire
|
280/55-17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
280 mm (11.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
154.2 kg (340.0 pounds) |
|
Power/weight ratio
|
0.9726 HP/kg |
|
Seat height
|
762 mm (30.0 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1524 mm (60.0 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
190 HP optional supercharger. |
