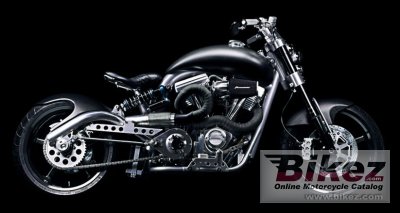

| Confederate's profilation of this bike |
| A new sport seat and Combat specific finish completes the machine. The result is an exotic balance of power and beauty. A discreet ´Combat´ insignia is engraved on the outer primary machined aircraft-grade aluminum timing chest. |
|
General information |
|
Motorcycle name
|
Confederate F131 Hellcat Combat |
|
Year of manufacture
|
2010 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
2146.8 ccm (131.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
150.0 HP (109.5 kW)) |
|
Torque
|
203.4 Nm (20.7 kgf-m or 150.0 ft.lbs) |
|
Bore x stroke
|
111.1 x 111.1 mm (4.4 x 4.4 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Confederate design; mill fit by hand; TIG welded; Mainframe: .120 gauge wall thickness DOM carbon steel; 3´ OD backbone; 2´ OD down tube; 1 1/4´ OD cradle; 1´ x 2´ rectangular strut; elongated neck; oil in frame; |
|
Front suspension
|
Marzocchi 50mm. inverted front forks with radial mounts. |
|
Rear suspension
|
Dual Penske; coil over with cooling reservoir; multi adjustable. |
|
Front tire
|
130/60-VR18 |
|
Rear tire
|
240/40-VR18 |
|
Front brakes
|
Double disc. Semi-floating rotor, 6 piston CNC machined monoblock caliper. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Semi-floating rotor, 2 piston CNC machined monoblock caliper. Integrated brake and clutch controls, master cylinders, and switches. |
|
Diameter
|
280 mm (11.0 inches) |
|
Physical measures and capacities |
|
Seat height
|
711 mm (28.0 inches) If adjustable, lowest setting. |
|
Oil capacity
|
4.90 litres (5.18 US quarts) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Comments
|
Limited edition of 150 bikes. |
