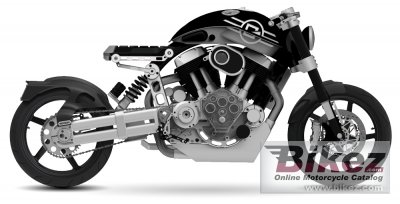

| Confederate's profilation of this bike |
| With the new C3 Hellcat, we set out to build the toughest motorcycle ever made. This mandated absolute chassis and powertrain rigidity along with complete resistance to core fatigue. To do this, we developed a new unitized powertrain casing, which is precision carved from a 400 pound block of 6061 aircraft grade aluminum. The result is superior structural integrity, weighing in at only 40 pounds. Within the new casing lives a big-boned, large diameter chassis/powertrain mounting system, informed by twenty years of Hellcat design. |
|
General information |
|
Model
|
Confederate C3 X132 Hellcat |
|
Model year
|
2011 |
|
Category
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
2163.2 ccm (132.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
X 132 Copperhead, L-twin |
|
Torque
|
196.6 Nm (20.0 kgf-m or 145.0 ft.lbs) |
|
Bore x stroke
|
111.8 x 111.8 mm (4.4 x 4.4 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
3 inch 120 wall hard steel backbone; 2 inch 120 wall hard steel downtube; Hand TIG wld fabrication |
|
Rake (fork angle)
|
30.0° |
|
Trail
|
108 mm (4.3 inches) |
|
Front suspension
|
50mm Racetech Lo-Hi speed rebound and compression adjustable |
|
Rear suspension
|
Coil over Racetech Lo-Hi speed rebound and compression adjustable |
|
Front tire
|
130/60-17 |
|
Rear tire
|
240/40-17 |
|
Front brakes
|
Double disc. Bremo 4-piston monoblock calipers. Radial pump technology. Carbon ceramics rotor. |
|
Rear brakes
|
Single disc |
|
Wheels
|
Carbon fiber |
|
Physical measures and capacities |
|
Seat height
|
711 mm (28.0 inches) If adjustable, lowest setting. |
|
Oil capacity
|
4.90 litres (5.18 US quarts) |
|
Other specifications |
|
Color options
|
Black/silver |
|
Starter
|
Electric |
|
Light
|
Integrated high intensity discharge headlamp |
