| Cobra's profilation of this bike |

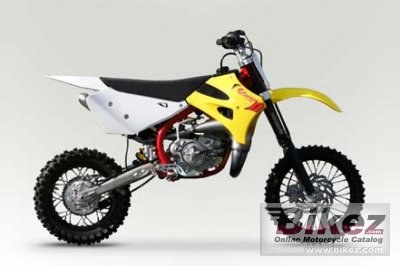

| Cobra is committed to producing the best 65cc motocrosser period. The 2012 CX65 is the culmination of those efforts, and back for 2012 is our world class chassis: Twin spar HSLA frame, ultra-light aluminum swingarm featuring aircraft bonding technology, three-way adjustable CARD rear shock - all adorned with best-in-class componentry. |
|
General information |
|
Model name
|
Cobra CX65 |
|
Year
|
2012 |
|
Category
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
65.0 ccm (3.97 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
V-Force Reed Valve |
|
Bore x stroke
|
44.5 x 41.7 mm (1.8 x 1.6 inches) |
|
Fuel system
|
Carburettor. Mikuni VM |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Mixture lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulically actuated |
|
Exhaust system
|
Tuned pipe and silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Twin Spar Oval HSLA |
|
Front suspension
|
Marzocchi 35mm USD Adjustable |
|
Front wheel travel
|
220 mm (8.7 inches) |
|
Rear suspension
|
CARD Fully Adjustable (High and Low Speed) |
|
Rear wheel travel
|
270 mm (10.6 inches) |
|
Front tire
|
60/100-14 |
|
Rear tire
|
80/100-12 |
|
Front brakes
|
Single disc. Floating disk, hydraulic |
|
Diameter
|
205 mm (8.1 inches) |
|
Rear brakes
|
Single disc. Floating disk, hydraulic |
|
Diameter
|
165 mm (6.5 inches) |
|
Wheels
|
AL rims |
|
Physical measures and capacities |
|
Dry weight
|
55.8 kg (123.0 pounds) |
|
Seat height
|
762 mm (30.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
250 mm (9.8 inches) |
|
Wheelbase
|
1140 mm (44.9 inches) |
|
Other specifications |
|
Color options
|
Yellow/red/black/white |
|
Starter
|
Kick |
