| Cobra's profilation of this bike |
| The bike that started it all for serious peewee competition, the 2011 Cobra King 50, hosts a bevy of big improvements that will ensure this bike retains its premier standing. Suspension at both ends receives big improvements as the King will feature the first-ever dual-adjustable (high and low speed compression) rear shock on any size mini. |
| General moped information |
|---|

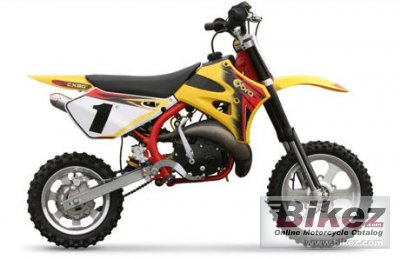

| Model: | Cobra CX50 SR |
| Year: | 2011 |
| Category: | Minibike, cross |
| Price as new: | US$ 3898. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 50.0 ccm (3.05 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Engine details: | Case Reed / V-ForceŽ Reed Valve |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Lubrication system: | Mixture lubrication |
| Cooling system: | Liquid |
| Gearbox: | 1-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Cobra 3Gx 3-Shoe |
| Exhaust system: | Tuned pipe and silencer |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Twin Spar Oval HSLA |
| Front suspension: | Cobra 30mm USD |
| Front wheel travel: | 210 mm (8.3 inches) |
| Rear suspension: | CARD Fully Adjustable (High and Low Speed) |
| Rear wheel travel: | 270 mm (10.6 inches) |
| Front tyre: | 2.50-12 |
| Rear tyre: | 2.75-10 |
| Front brakes: | Single disc |
| Diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Single disc |
| Diameter: | 140 mm (5.5 inches) |
| Wheels: | Cobra 12´ Billet / Cobra 10´ Billet |
| Physical measures and capacities |
|---|
| Dry weight: | 41.3 kg (91.0 pounds) |
| Seat height: | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 245 mm (9.6 inches) |
| Wheelbase: | 990 mm (39.0 inches) |
| Other specifications |
|---|
| Color options: | Yellow/red/black/white |
| Starter: | Kick |
