| Cobra's profilation of this bike |
| This little bike proved why it’s known as the “King” of the 50 class winning championship after championship all season long |
|
General moped information |
|
Model name
|

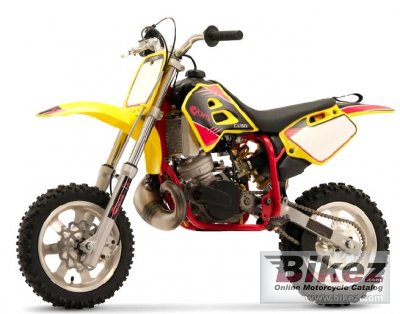

Cobra CX50 Sr |
|
Model year
|
2009 |
|
Category
|
Minibike, cross |
| Price as new | US$ 3798. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
50.0 ccm (3.05 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
39.0 x 41.7 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
Mixture lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Cobra 3Gx 3-Shoe |
|
Exhaust system
|
Tuned pipe and silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double Cradle 4130 ChrMo Steel |
|
Front suspension
|
Cobra 30mm USD 210mm travel |
|
Rear suspension
|
Fox Piggyback Fully Adjustable 248mm travel |
|
Front tire
|
2.50-12 |
|
Rear tire
|
2.75-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
41.3 kg (91.0 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
240 mm (9.4 inches) |
|
Wheelbase
|
990 mm (39.0 inches) |
|
Other specifications |
|
Color options
|
Yellow/red/black |
