Cobra CX50 Junior 20122012 Cobra CX50 Junior specifications, pictures, reviews and rating |

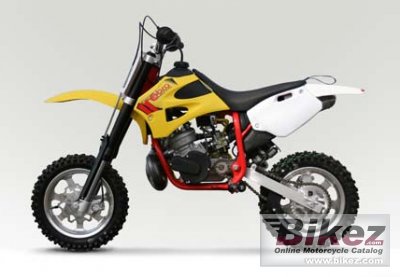

2012 Cobra CX50 Junior. Image credits - Cobra.
| Cobra's profilation of this bike |
| All-New Radiator Shrouds - Not only do the 2012 shrouds give the bike a much needed facelift, but they fit and perform better as well! Count on increased air flow over the radiator, improved radiator protection, and more comfortable ergonomics. |
| General moped information | |
|---|---|
| Model | Cobra CX50 Junior |
| Year model | 2012 |
| Type | Minibike, cross |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 50.0 ccm (3.05 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | V-Force Reed Valve |
| Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | Mixture lubrication |
| Cooling system | Liquid |
| Gearbox | 1-speed |
| Transmission type | Chain (final drive) |
| Clutch | Cobra 3Gx 3-Shoe |
| Exhaust system | Tuned pipe and silencer |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double Cradle 4130 CrMo steel |
| Front suspension | CARD 30mm USD |
| Front wheel travel | 170 mm (6.7 inches) |
| Rear suspension | CARD Adjustable Piggyback |
| Rear wheel travel | 170 mm (6.7 inches) |
| Front tire | 2.50-10 |
| Rear tire | 2.75-10 |
| Front brakes | Single disc |
| Diameter | 160 mm (6.3 inches) |
| Rear brakes | Single disc |
| Diameter | 140 mm (5.5 inches) |
| Wheels | Cobra 10 inch Billet |
| Physical measures and capacities | |
| Dry weight | 36.7 kg (81.0 pounds) |
| Seat height | 607 mm (23.9 inches) If adjustable, lowest setting. |
| Ground clearance | 216 mm (8.5 inches) |
| Wheelbase | 908 mm (35.7 inches) |
| Other specifications | |
| Color options | Yellow/red/black/white |
| Starter | Kick |
| Modifications compared to previous model | Rear disk brake. |
