| Cobra's profilation of this bike |
| It should not come as a surprise that the CX50JR was won every single AMA national championship title at Loretta Lynn’s since the class’ inception in 1997. While other manufacturers are turning their back on the smallest racers, Cobra is fully embracing them with several important improvements for next season. |
| General moped information |
|---|

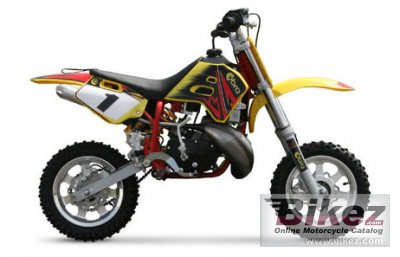

| Model: | Cobra CX50 Junior |
| Year: | 2011 |
| Category: | Minibike, cross |
| Price as new: | US$ 3498. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 50.0 ccm (3.05 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Engine details: | Case Reed / V-Force® Reed Valve |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Lubrication system: | Mixture lubrication |
| Cooling system: | Liquid |
| Gearbox: | 1-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Cobra 3Gx 3-Shoe |
| Exhaust system: | Tuned pipe and silencer |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double Cradle 4130 CrMo steel |
| Front suspension: | Marzocchi 32mm |
| Front wheel travel: | 160 mm (6.3 inches) |
| Rear suspension: | Öhlins Piggyback |
| Rear wheel travel: | 170 mm (6.7 inches) |
| Front tyre: | 2.50-12 |
| Rear tyre: | 2.75-10 |
| Front brakes: | Single disc |
| Diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Single disc |
| Diameter: | 140 mm (5.5 inches) |
| Wheels: | Cobra 10´ Billet / Cobra 10´ Billet |
| Physical measures and capacities |
|---|
| Dry weight: | 36.7 kg (81.0 pounds) |
| Seat height: | 607 mm (23.9 inches) If adjustable, lowest setting. |
| Ground clearance: | 216 mm (8.5 inches) |
| Wheelbase: | 908 mm (35.7 inches) |
| Other specifications |
|---|
| Color options: | Yellow/red/black/white |
| Starter: | Kick |
| Modifications compared to previous model: | Rear disk brake. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 11 Cobra CX50 Junior discussion group or the general Cobra discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
