Cobra CX50 Jr 20092009 Cobra CX50 Jr specifications, pictures, reviews and rating |

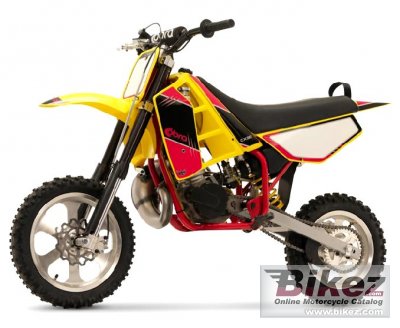

![]() 2009 Cobra CX50 Jr. Picture credits - Cobra. Submit more pictures.
|
Cobra's profilation of this bike |
Coming off another astonishing season with championship wins at all the major amateur national events it’s easy to see why the CX50 Junior is the bike to have in the 51cc 4-6 classes. |
General moped information | |
---|---|
Model: | Cobra CX50 Jr |
Year: | 2009 |
Category: | Minibike, cross |
Price as new: | US$ 3798. MSRP depend on country, taxes, accessories, etc. |
Rating: | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission | |
Displacement: | 50.0 ccm (3.05 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
Fuel system: | Carburettor |
Lubrication system: | Mixture lubrication |
Cooling system: | Liquid |
Gearbox: | Automatic |
Transmission type, final drive: | Chain |
Clutch: | Cobra 3Gx 3-Shoe |
Exhaust system: | Tuned pipe and silencer |
Chassis, suspension, brakes and wheels | |
Frame type: | Double Cradle 4130 ChrMo Steel |
Front suspension: | Marzocchi 32mm |
Front wheel travel: | 160 mm (6.3 inches) |
Rear suspension: | Öhlins Piggyback |
Rear wheel travel: | 170 mm (6.7 inches) |
Front tyre: | 2.50-12 |
Rear tyre: | 2.75-10 |
Front brakes: | Single disc |
Diameter: | 160 mm (6.3 inches) |
Rear brakes: | Expanding brake (drum brake) |
Physical measures and capacities | |
Dry weight: | 36.7 kg (81.0 pounds) |
Seat height: | 607 mm (23.9 inches) If adjustable, lowest setting. |
Ground clearance: | 216 mm (8.5 inches) |
Wheelbase: | 908 mm (35.7 inches) |
Other specifications | |
