| Cobra's profilation of this bike |
| A bike made specifically for the rider... Cobra takes the riders weight, height, riding ability, the type of racing he or she does, and takes it all into consideration when building a fully custom suspension and engine package. |
|
General moped information |
|
Model name
|

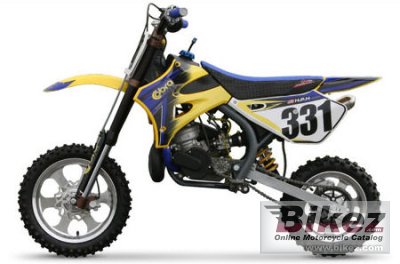

Cobra CX50 Card |
|
Year
|
2011 |
|
Category
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
50.0 ccm (3.05 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
Case Reed / V-Force® Reed Valve |
|
Bore x stroke
|
39.0 x 41.7 mm (1.5 x 1.6 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Mixture lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
1-speed |
|
Clutch
|
Cobra 3Gx 3-Shoe |
|
Exhaust system
|
Tuned pipe and silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Twin Spar Oval HSLA |
|
Front suspension
|
Cobra 30mm USD |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
CARD Fully Adjustable (High and Low Speed) |
|
Rear wheel travel
|
270 mm (10.6 inches) |
|
Front tire
|
2.50-12 |
|
Rear tire
|
2.75-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
42.0 kg (92.6 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
245 mm (9.6 inches) |
|
Wheelbase
|
990 mm (39.0 inches) |
|
Other specifications |
|
Color options
|
Yellow/blue/black. |
|
Starter
|
Kick |
