| CH Racing's profilation of this bike |

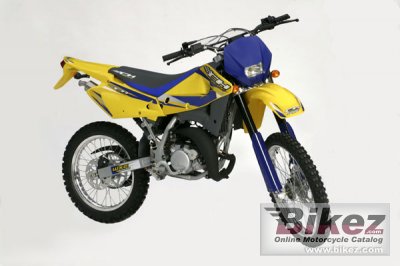

| The CH RACING 50 M.Y. is the real miniature of the official bikes which compete in the enduro and supermotard World Championship with our own racing team. |
| General moped information |
|---|
| Model: | CH Racing WXE 50 eu2 M.Y. |
| Year: | 2008 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.7 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Top speed: | 45.0 km/h (28.0 mph) |
| Fuel system: | Carburettor. PHBN 16 |
| Cooling system: | Liquid |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | MARZOCCHI upside-down with single hydraulic shock absorber - black color |
| Rear suspension: | Progressive unitrac type single hydraulic shock absorber |
| Front tire: | 80/90-21 |
| Rear tire: | 110/80-18 |
| Front brakes: | Single disc |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 200 mm (7.9 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 92.0 kg (202.8 pounds) |
| Overall height: | 1200 mm (47.2 inches) |
| Overall length: | 1990 mm (78.3 inches) |
| Overall width: | 810 mm (31.9 inches) |
| Ground clearance: | 340 mm (13.4 inches) |
| Wheelbase: | 1375 mm (54.1 inches) |
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Other specifications |
|---|
| Color options: | Red/white, blue/yellow |
| Starter: | Kick |
