| CH Racing's profilation of this bike |
| A new way of running a bike, with no stress at all. |
|
General information |
|
Motorcycle name
|

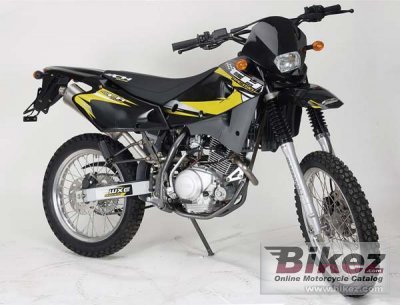

CH Racing WXE 125 eu 2 |
|
Year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
123.7 ccm (7.55 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Fuel system
|
Carburettor. Mikuni UCAL |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Marzocchiupside-down´ telescopic hydraulic fork |
|
Rear suspension
|
Progressive unitrac type with single hydraulic shock absorber |
|
Front tire
|
80/90-21 |
|
Rear tire
|
110/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
107.0 kg (235.9 pounds) |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1200 mm (47.2 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Ground clearance
|
340 mm (13.4 inches) |
|
Wheelbase
|
1375 mm (54.1 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Blue/yellow |
|
Starter
|
Electric & kick |
