| CH Racing's profilation of this bike |
| It is the real copy of the racing bikes!! Braking brake discs, Cemoto hand guards, Progrip grips, Tommaselli aluminium handle bar, racing tranfer kit, aluminium engine protection plate, aluminium rear brake pump protection. |
|
General moped information |
|
Motorcycle name
|

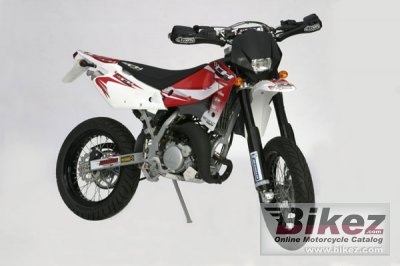

CH Racing WSM 50 Replica |
|
Year model
|
2010 |
|
Type
|
Super motard |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.7 ccm (3.03 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Top speed
|
45.0 km/h (28.0 mph) |
|
Fuel system
|
Carburettor. PHBN 16 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
MARZOCCHI upside-down telescopic hydraulic fork - black color |
|
Rear suspension
|
Progressive unitrac type with single hydraulic shock absorber |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
92.0 kg (202.8 pounds) |
|
Weight incl. oil, gas, etc
|
100.0 kg (220.5 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1160 mm (45.7 inches) |
|
Overall length
|
2050 mm (80.7 inches) |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1375 mm (54.1 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Red/white/black |
|
Starter
|
Kick |
