| CH Racing's profilation of this bike |
| It is the real copy of the racing bikes! Braking brake discs, Cemoto hand guards, Progrip grips, Tommaselli aluminium handle bar, racing tranfer kit, aluminium engine protection plate, aluminium rear brake pump protection. |
|
General moped information |
|
Model name
|

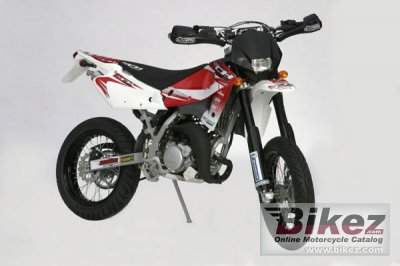

CH Racing WSM 50 Replica |
|
Year
|
2008 |
|
Category
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.7 ccm (3.03 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Top speed
|
45.0 km/h (28.0 mph) |
|
Fuel system
|
Carburettor. PHBN 16 |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
MARZOCCHI upside-down telescopic hydraulic fork - black color |
|
Rear suspension
|
Progressive unitrac type wih single hydraulic shock absorber |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
92.0 kg (202.8 pounds) |
|
Overall length
|
1990 mm (78.3 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1375 mm (54.1 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Starter
|
Kick |
