| CH Racing's profilation of this bike |
| As usual, components quality is the aim of our little production destined to our selected clients. |
|

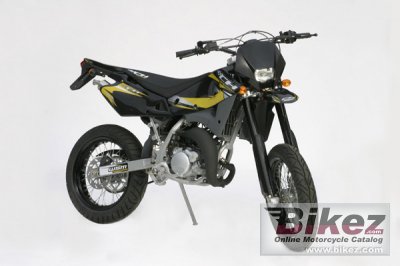

General moped information |
|
Model name
|
CH Racing WSM 50 |
|
Year model
|
2009 |
|
Type
|
Super motard |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.7 ccm (3.03 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Top speed
|
45.0 km/h (28.0 mph) |
|
Fuel system
|
Carburettor. PHBN 16 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
MARZOCCHI upside-down telescopic hydraulic fork - black color |
|
Rear suspension
|
Progressive unitrac type with single hydraulic shock absorber |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
92.0 kg (202.8 pounds) |
|
Overall height
|
1160 mm (45.7 inches) |
|
Overall length
|
1990 mm (78.3 inches) |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1375 mm (54.1 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
