| CH Racing's profilation of this bike |
| Second step, after 501, same height from ground with a more powerful engine, 3,5HP. Good for guys from 5 to 7 years old. |
|
General moped information |
|
Motorcycle name
|

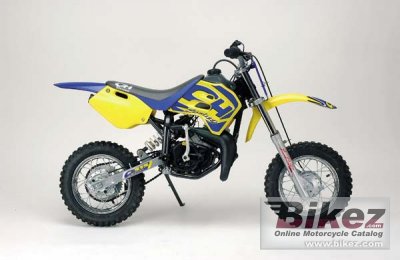

CH Racing CH 515 Basic |
|
Year of manufacture
|
2010 |
|
Type
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.7 ccm (3.03 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
3.5 HP (2.6 kW)) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Mechanical traditional fork |
|
Rear suspension
|
Single shock absorber |
|
Front tire
|
2.50-14 |
|
Rear tire
|
3.00-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
40.0 kg (88.2 pounds) |
|
Power/weight ratio
|
0.0875 HP/kg |
|
Seat height
|
735 mm (28.9 inches) If adjustable, lowest setting. |
|
Overall height
|
940 mm (37.0 inches) |
|
Overall length
|
1500 mm (59.1 inches) |
|
Overall width
|
630 mm (24.8 inches) |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1100 mm (43.3 inches) |
|
Fuel capacity
|
2.80 litres (0.74 US gallons) |
|
Other specifications |
|
Color options
|
Blue/yellow |
|
Starter
|
Kick |
|
Comments
|
Intended for children 5 to 7 years old. CH Racing is an Italian brand modifying Husqvarna bikes. |
