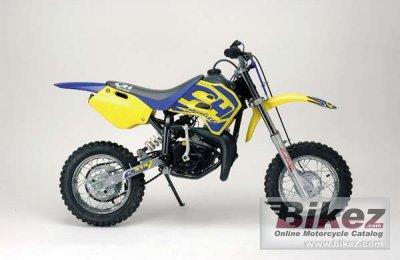

CH Racing's profilation of this bike |
Second step, after 501, same height from ground with a more powerful engine, 3,5HP. |
General moped information |
---|
Model | CH Racing CH 515 Basic |
Year | 2009 |
Category | Minibike, cross |
Rating | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
---|
Displacement | 49.7 ccm (3.03 cubic inches) |
Engine type | Single cylinder, two-stroke |
Power | 3.5 HP (2.6 kW)) |
Fuel system | Carburettor |
Cooling system | Air |
Transmission type | Chain (final drive) |
Chassis, suspension, brakes and wheels |
---|
Frame type | Steel |
Front suspension | Mechanical fork |
Rear suspension | Single shock absorber |
Front tire | 2.50-14 |
Rear tire | 3.00-12 |
Front brakes | Single disc |
Diameter | 175 mm (6.9 inches) |
Rear brakes | Expanding brake (drum brake) |
Physical measures and capacities |
---|
Dry weight | 40.0 kg (88.2 pounds) |
Power/weight ratio | 0.0875 HP/kg |
Seat height | 735 mm (28.9 inches) If adjustable, lowest setting. |
Overall height | 940 mm (37.0 inches) |
Overall length | 1500 mm (59.1 inches) |
Overall width | 630 mm (24.8 inches) |
Ground clearance | 280 mm (11.0 inches) |
Wheelbase | 1100 mm (43.3 inches) |
Fuel capacity | 2.80 litres (0.74 US gallons) |
Other specifications |
---|
Starter | Kick |
Comments | Intended for children 8 to 12 years old. |
