SPECS · PICS · REVIEWS · RATING
|
CH Racing CH 511 Racing Big Wheels 20092009 CH Racing CH 511 Racing Big Wheels specifications, pictures, reviews and rating |

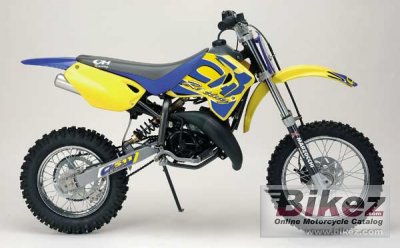

 2009 CH Racing CH 511 Racing Big Wheels. Picture credits - CH Racing. Submit more pictures.
|
|
| CH Racing's profilation of this bike |
| Same saddle height as 510, this minicross is for an agonistic use. 8HP engine and racing cycling parts. |
| General moped information | |
|---|---|
| Model: | CH Racing CH 511 Racing Big Wheels |
| Year: | 2009 |
| Category: | Minibike, cross |
| Rating: | 67.3 out of 100. Show full rating and compare with other bikes |
| Engine and transmission | |
| Displacement: | 49.70 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 8.00 HP (5.8 kW)) |
| Fuel system: | Carburettor. DELL´ORTO PHBG 14 MS |
| Cooling system: | Air |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Steel |
| Front suspension: | Telescopic fork |
| Rear suspension: | Single shock absorber |
| Front tyre: | 2.50-14 |
| Rear tyre: | 3.00-12 |
| Front brakes: | Single disc |
| Front brakes diameter: | 175 mm (6.9 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight: | 40.0 kg (88.2 pounds) |
| Power/weight ratio: | 0.2000 HP/kg |
| Seat height: | 735 mm (28.9 inches) If adjustable, lowest setting. |
| Overall height: | 940 mm (37.0 inches) |
| Overall length: | 1,500 mm (59.1 inches) |
| Overall width: | 630 mm (24.8 inches) |
| Ground clearance: | 280 mm (11.0 inches) |
| Wheelbase: | 1,100 mm (43.3 inches) |
| Fuel capacity: | 2.80 litres (0.74 gallons) |
| Other specifications | |
| Starter: | Kick |
| Comments: | Intended for children 8 to 12 years old. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts |
| Ask questions | Join the 09 CH Racing CH 511 Racing Big Wheels discussion group or the general CH Racing discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2009 CH Racing CH 511 Racing Big Wheels discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this CH Racing moped | |
Offroad capabilities for the 2009 CH Racing CH 511 Racing Big Wheels:  (72.1 out of 100)Click here for complete rating. You can also compare bikes. |
|
|
|
