| CH Racing's profilation of this bike |
| Bike for older guys, always beginners. Suggested age: from 8 to 12 years old depending on height. |
| General moped information |
|---|

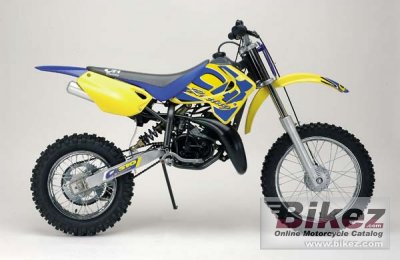

| Model: | CH Racing CH 510 Basic Big Wheels |
| Year: | 2010 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.70 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 3.50 HP (2.6 kW)) |
| Fuel system: | Carburettor. DELL´ORTO PHBG 14 MS |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork |
| Rear suspension: | Single shock absorber |
| Front tyre: | 2.50-14 |
| Rear tyre: | 3.00-12 |
| Front brakes: | Single disc |
| Front brakes diameter: | 175 mm (6.9 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 38.0 kg (83.8 pounds) |
| Weight incl. oil, gas, etc: | 42.0 kg (92.6 pounds) |
| Power/weight ratio: | 0.0921 HP/kg |
| Seat height: | 734 mm (28.9 inches) If adjustable, lowest setting. |
| Overall length: | 1,500 mm (59.1 inches) |
| Ground clearance: | 280 mm (11.0 inches) |
| Wheelbase: | 1,100 mm (43.3 inches) |
| Fuel capacity: | 2.80 litres (0.74 gallons) |
| Other specifications |
|---|
| Color options: | Blue/yellow |
| Starter: | Kick |
| Comments: | Intended for children 8 to 12 years old. CH Racing is an Italian brand modifying Husqvarna bikes. |
