| CH Racing's profilation of this bike |
| Pure racing minicross, 12HP engine water cooled, only for expert boys. To be run in open spaces. A real jewel for guys from 8 to 10 years old. |
| General moped information |
|---|

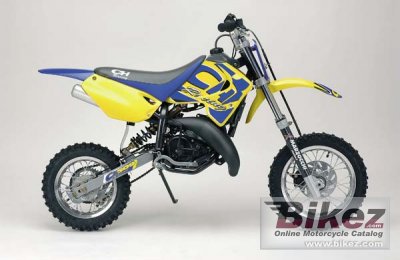

| Model | CH Racing CH 509 Pro Senior |
| Year | 2010 |
| Category | Minibike, cross |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement | 49.7 ccm (3.03 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 12.0 HP (8.8 kW)) |
| Fuel system | Carburettor. DELL´ORTO PHBG 19 BS |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Telescopic hydraulic fork |
| Rear suspension | Single shock absorber |
| Front tire | 2.50-12 |
| Rear tire | 2.50-10 |
| Front brakes | Single disc |
| Diameter | 175 mm (6.9 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight | 40.0 kg (88.2 pounds) |
| Weight incl. oil, gas, etc | 45.0 kg (99.2 pounds) |
| Power/weight ratio | 0.3000 HP/kg |
| Seat height | 678 mm (26.7 inches) If adjustable, lowest setting. |
| Overall length | 1400 mm (55.1 inches) |
| Ground clearance | 250 mm (9.8 inches) |
| Wheelbase | 1024 mm (40.3 inches) |
| Fuel capacity | 2.80 litres (0.74 US gallons) |
| Other specifications |
|---|
| Color options | Blue/yellow |
| Starter | Kick |
| Comments | Intended for children 8 to 10 years old. CH Racing is an Italian brand modifying Husqvarna bikes. |
