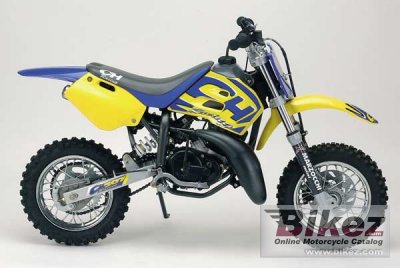

CH Racing CH 501 Basic 20092009 CH Racing CH 501 Basic specifications, pictures, reviews and rating |
| CH Racing's profilation of this bike |
| Minicross for beginners, from 5 to 7 years old, low power only 1,5HP. |
| General moped information | |
|---|---|
| Model | CH Racing CH 501 Basic |
| Year | 2009 |
| Category | Minibike, cross |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.7 ccm (3.03 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 1.5 HP (1.1 kW)) |
| Fuel system | Carburettor. DELL ORTO 14mm |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Mecanical traditional |
| Rear suspension | Single shock absorber |
| Front tire | 2.50-10 |
| Rear tire | 2.50-10 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 35.0 kg (77.2 pounds) |
| Power/weight ratio | 0.0429 HP/kg |
| Seat height | 615 mm (24.2 inches) If adjustable, lowest setting. |
| Overall height | 795 mm (31.3 inches) |
| Overall width | 630 mm (24.8 inches) |
| Ground clearance | 230 mm (9.1 inches) |
| Wheelbase | 925 mm (36.4 inches) |
| Fuel capacity | 2.80 litres (0.74 US gallons) |
| Other specifications | |
| Starter | Kick |
| Comments | For children 5 to 7 years old. |
