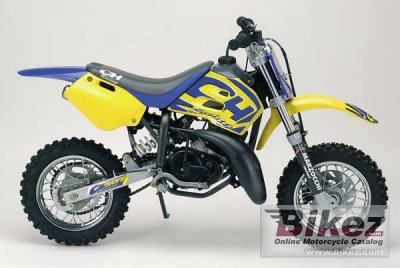

| CH Racing's profilation of this bike |
| Minicross for beginners, from 5 to 7 years old, low power only 1,5HP, but, as all our bikes, with a great look! |
| General moped information |
|---|
| Model | CH Racing CH 501 Basic |
| Year | 2008 |
| Category | Minibike, cross |
| Rating | 3.5 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 49.7 ccm (3.03 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 2.0 HP (1.5 kW)) |
| Fuel system | Carburettor. DELL ORTO 14mm |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Mecanical traditional |
| Rear suspension | Single shock absorber |
| Front tire | 2.50-10 |
| Rear tire | 2.50-10 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight | 35.0 kg (77.2 pounds) |
| Power/weight ratio | 0.0574 HP/kg |
| Overall height | 795 mm (31.3 inches) |
| Overall width | 630 mm (24.8 inches) |
| Ground clearance | 230 mm (9.1 inches) |
| Wheelbase | 925 mm (36.4 inches) |
| Fuel capacity | 2.80 litres (0.74 US gallons) |
| Other specifications |
|---|
| Starter | Kick |
| Comments | Intended for children 5-7 years old. |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 08 CH Racing CH 501 Basic discussion group or the general CH Racing discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this CH Racing moped
|
Racing track capabilities for the 2008 CH Racing CH 501 Basic:
 (75.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
