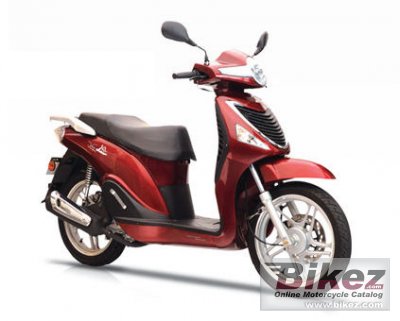

Picture credits - CF Moto. Click to submit more pictures.

2010 CF Moto E-Charm 150

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	CF Moto E-Charm 150
Year:	2010
Category:	Scooter
Rating:	67.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	152.70 ccm (9.32 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	12.07 HP (8.8 kW)) @ 8500 RPM
Torque:	10.80 Nm (1.1 kgf-m or 8.0 ft.lbs) @ 7250 RPM
Compression:	10.3:1
Bore x stroke:	58.0 x 57.8 mm (2.3 x 2.3 inches)
Fuel system:	Injection
Fuel control:	Single Overhead Cams (SOHC)
Cooling system:	Liquid
Gearbox:	Automatic
Transmission type, final drive:	Belt
Chassis, suspension, brakes and wheels
Front suspension:	33mm Telescopic Fork, 100mm Travel
Rear suspension:	Cantilever
Front tyre:	100/80-16
Rear tyre:	120/80-16
Front brakes:	Single disc
Front brakes diameter:	240 mm (9.4 inches)
Rear brakes:	Single disc
Rear brakes diameter:	220 mm (8.7 inches)
Physical measures and capacities
Dry weight:	138.0 kg (304.2 pounds)
Power/weight ratio:	0.0875 HP/kg
Seat height:	795 mm (31.3 inches) If adjustable, lowest setting.
Overall height:	1,200 mm (47.2 inches)
Overall length:	2,075 mm (81.7 inches)
Overall width:	690 mm (27.2 inches)
Ground clearance:	160 mm (6.3 inches)
Wheelbase:	1,320 mm (52.0 inches)
Fuel capacity:	8.00 litres (2.11 gallons)
Other specifications
Color options:	Pearl white, silver, dark gray, dark red, black
Starter:	Electric
Comments:	Also called CF150T-5i
