General information |
|
Motorcycle name
|

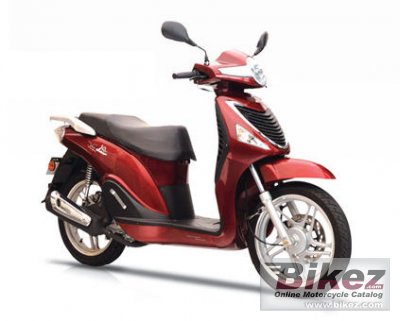

CF Moto E-Charm 125 |
|
Model year
|
2010 |
|
Category
|
Scooter |
|
Rating
|
2.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.6 ccm (7.60 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
8.7 HP (6.4 kW)) @ 8500 RPM |
|
Torque
|
8.0 Nm (0.8 kgf-m or 5.9 ft.lbs) @ 7000 RPM |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
52.0 x 57.8 mm (2.0 x 2.3 inches) |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure and splash |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
33mm Telescopic Fork, 100mm Travel |
|
Rear suspension
|
Cantilever |
|
Front tire
|
100/80-16 |
|
Rear tire
|
120/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
130.0 kg (286.6 pounds) |
|
Power/weight ratio
|
0.0671 HP/kg |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1200 mm (47.2 inches) |
|
Overall length
|
2075 mm (81.7 inches) |
|
Ground clearance
|
160 mm (6.3 inches) |
|
Wheelbase
|
1320 mm (52.0 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Pearl white, silver, dark gray, dark red, black |
|
Starter
|
Electric |
|
Comments
|
Also called CF125T-21i |
