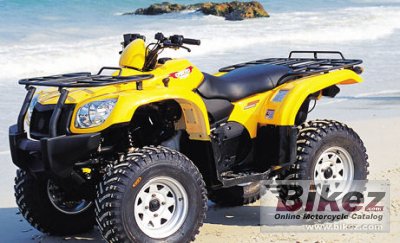

CF Moto CF500 20102010 CF Moto CF500 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | CF Moto CF500 |
| Year | 2010 |
| Category | ATV |
| Rating | 3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 493.0 ccm (30.08 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 32.2 HP (23.5 kW)) @ 6500 RPM |
| Torque | 38.8 Nm (4.0 kgf-m or 28.6 ft.lbs) @ 5500 RPM |
| Compression | 10.2:1 |
| Bore x stroke | 87.5 x 82.0 mm (3.4 x 3.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Pressure and Splash |
| Cooling system | Liquid |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double wishbone Independent Suspension, Coil Spring Oil Damp Shock Absorber |
| Rear suspension | Double wishbone Independent Suspension, Coil Spring Oil Damp Shock Absorber |
| Front tire | 185/88-12 |
| Rear tire | 270/60-12 |
| Front brakes | Double disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc |
| Diameter | 150 mm (5.9 inches) |
| Physical measures and capacities | |
| Dry weight | 337.0 kg (743.0 pounds) |
| Power/weight ratio | 0.0955 HP/kg |
| Seat height | 550 mm (21.7 inches) If adjustable, lowest setting. |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2120 mm (83.5 inches) |
| Overall width | 1170 mm (46.1 inches) |
| Ground clearance | 275 mm (10.8 inches) |
| Wheelbase | 1290 mm (50.8 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Other specifications | |
| Starter | Electric |
| Comments | 2WD/4WD. Diff lock. Also available in a long version. |
