General information |
|
Motorcycle name
|

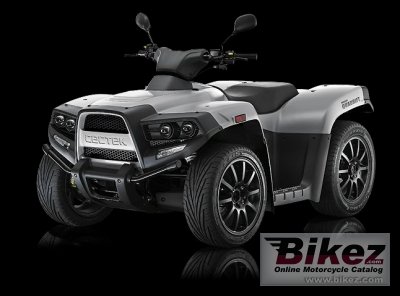

Cectek Quadrift 500 EFI |
|
Model year
|
2011 |
|
Category
|
ATV |
|
Rating
|
3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
500.0 ccm (30.51 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Fuel system
|
Injection. Electronic Fuel Injection (EFI) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Non-centrifugal clutch CVT system with engine braking function |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent, double A-arm, continuous preload seetings, |
|
Front wheel travel
|
102 mm (4.0 inches) |
|
Rear suspension
|
Independent, double A-arm, oil-damped, continuous preload settings, sway-bar |
|
Rear wheel travel
|
102 mm (4.0 inches) |
|
Front tire
|
195/45-R15 |
|
Rear tire
|
215/40-R16 |
|
Front brakes
|
Double disc |
|
Diameter
|
250 mm (9.8 inches) |
|
Rear brakes
|
Single disc |
|
Wheels
|
Aluminum wheels and low-profile highway tire |
|
Physical measures and capacities |
|
Dry weight
|
310.0 kg (683.4 pounds) |
|
Seat height
|
776 mm (30.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1101 mm (43.3 inches) |
|
Overall length
|
2158 mm (85.0 inches) |
|
Overall width
|
1310 mm (51.6 inches) |
|
Ground clearance
|
137 mm (5.4 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Color options
|
Gray, silver, white, green |
|
Starter
|
Electric |
|
Instruments
|
Multifunction LCD display. RPM/Speed/ODO/Trip/Time/Fuel Water Temp/Oil pressure/Back Light:Orange Indicator/Shift Position/High beam/Flash/Engine over speed/Diff. locked. |
|
Carrying capacity
|
60kg rear rack. 425 kg towing capacity. |
|
Comments
|
Integrated gearbox inside the engine with Park, Neuter, Hi-Lo dual range and Reverse Gears. |
