General information |
|
Model name
|

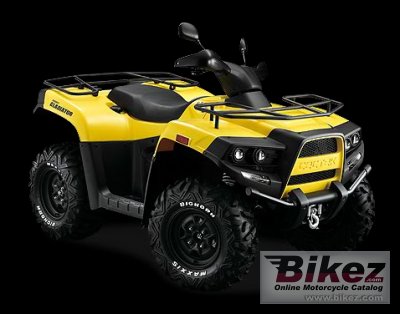

Cectek Gladiator 500 EFI |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
|
Rating
|
3.3 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
500.0 ccm (30.51 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Fuel system
|
Injection |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Non-centrifugal clutch CVT system with engine braking function |
|
Driveline
|
Integrated gearbox inside the engine with Park, Neuter, Hi-Lo dual range and Reverse, 2WD/4WD Switch Gears. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent, double A-arm, oil-damped, continuous preload settings. Option: adjustable oil/gas-damped, continuous preload settings. |
|
Front wheel travel
|
206 mm (8.1 inches) |
|
Rear suspension
|
Independent, double A-arm, oil-damped, continuous preload settings, sway-bar. Option: adjustable oil/gas-damped, continuous preload settings |
|
Rear wheel travel
|
180 mm (7.1 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
330.0 kg (727.5 pounds) |
|
Weight incl. oil, gas, etc
|
355.0 kg (782.6 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1205 mm (47.4 inches) |
|
Overall length
|
2158 mm (85.0 inches) |
|
Overall width
|
1310 mm (51.6 inches) |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Color options
|
Yellow, white, drak green, silver |
|
Starter
|
Electric |
|
Carrying capacity
|
425 kg towing capacity |
|
Comments
|
Four-way drive selector system lets you go from 2WD to 2WD/ Diff Lock to 4WD to 4WD/ Diff Lock. |
