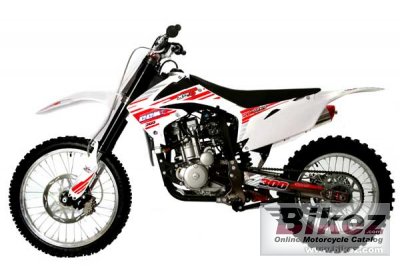

CCM XTR-4 300 20132013 CCM XTR-4 300 specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| In trail trim you have a bike on which you can explore, knowing that you can count on the durability and reliability. Whilst as a supermoto model, it has a proven race pedigree that has brought it European track success. |
| General information | |
|---|---|
| Motorcycle name | CCM XTR-4 300 |
| Year model | 2013 |
| Type | Super motard |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 300.0 ccm (18.31 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 78.0 x 61.2 mm (3.1 x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. SU Mikuni 34mm |
| Lubrication system | Pressure pump feed |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Clutch | Wet |
| Driveline | 2.7:1 520 chain |
| Exhaust system | Sport design / baffle / no fiber |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chrome molly |
| Rake (fork angle) | 28.0° |
| Front suspension | SPX race forks |
| Front wheel travel | 245 mm (9.6 inches) |
| Rear suspension | Rebound / compression / preload |
| Rear wheel travel | 240 mm (9.4 inches) |
| Front tire | 2.50-21 |
| Rear tire | 3.00-18 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities | |
| Dry weight | 124.0 kg (273.4 pounds) |
| Seat height | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Alternate seat height | 925 mm (36.4 inches) If adjustable, highest setting. |
| Ground clearance | 280 mm (11.0 inches) |
| Wheelbase | 1505 mm (59.3 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Color options | White/red/black |
| Starter | Electric & kick |
| Electrical | 12 Volt |
| Comments | CCM is an abbreviation of Clews Competition Motorcycles,a British motorcycle manufacturer founded when BSA´s Competition Department collapsed in 1971. |
