| CCM's profilation of this bike |
| In trail trim you have a bike on which you can explore, knowing that you can count on the durability and reliability. Whilst as a supermoto model, it has a proven race pedigree that has brought it European track success. |
|
General information |
|
Model
|

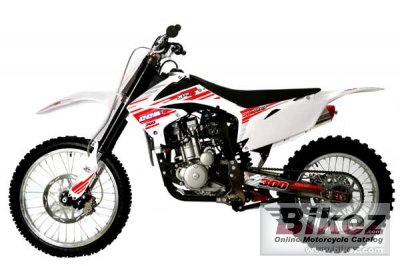

CCM XTR-4 300 |
|
Model year
|
2012 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
300.0 ccm (18.31 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
78.0 x 61.2 mm (3.1 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. SU Mikuni 34mm |
|
Lubrication system
|
Pressure pump feed |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet |
|
Exhaust system
|
Sport design / baffle / no fiber |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chrome molly |
|
Rake (fork angle)
|
28.0° |
|
Front suspension
|
SPX race forks |
|
Front wheel travel
|
245 mm (9.6 inches) |
|
Rear suspension
|
Rebound / compression / preload |
|
Rear wheel travel
|
240 mm (9.4 inches) |
|
Front tire
|
2.50-21 |
|
Rear tire
|
3.00-18 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
124.0 kg (273.4 pounds) |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
925 mm (36.4 inches) If adjustable, highest setting. |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1505 mm (59.3 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
White/red/black |
|
Starter
|
Electric & kick |
|
Comments
|
British brand. |
