General information |
|
Motorcycle name
|

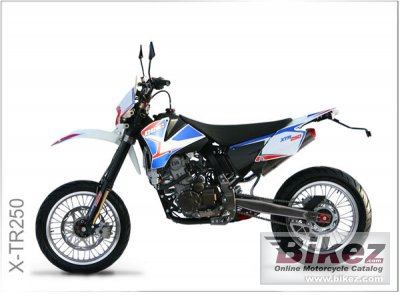

CCM X-TR250 |
|
Model year
|
2010 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
249.4 ccm (15.22 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
23.6 HP (17.2 kW)) @ 7000 RPM |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
70.0 x 64.8 mm (2.8 x 2.6 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Mikuni |
|
Ignition
|
Electronic ignition (CDI) |
|
Lubrication system
|
Pressure pump feed |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Cromolly |
|
Front suspension
|
USD 41mm fork adjustable rebound / compression/ preload |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
Rebound / compression / preload |
|
Rear wheel travel
|
300 mm (11.8 inches) |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
113.0 kg (249.1 pounds) |
|
Weight incl. oil, gas, etc
|
124.0 kg (273.4 pounds) |
|
Power/weight ratio
|
0.2088 HP/kg |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1505 mm (59.3 inches) |
|
Fuel capacity
|
8.60 litres (2.27 US gallons) |
|
Other specifications |
|
Color options
|
Red/white/blue/black |
|
Starter
|
Electric & kick |
|
Comments
|
British brand. |
