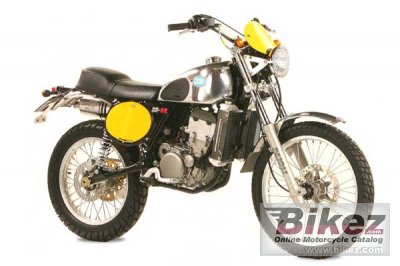

CCM SR40 20132013 CCM SR40 specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| Nspired by the classic scramblers of the late sixties and early seventies the SR-40 is a touch of the past with a modern twist. |
| General information | |
|---|---|
| Model | CCM SR40 |
| Year model | 2013 |
| Type | Classic |
| Rating | 3.6 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 398.0 ccm (24.29 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 42.0 HP (30.7 kW)) |
| Bore x stroke | 90.0 x 62.6 mm (3.5 x 2.5 inches) |
| Fuel system | Carburettor. Keihin FCR39 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | CDI |
| Lubrication system | Dry Sump |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Driveline | 520 heavy duty o-ring chain |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel oil in frame |
| Front suspension | Paioli conventional 40mm |
| Front wheel travel | 124 mm (4.9 inches) |
| Rear suspension | Hagon twin shocks |
| Rear wheel travel | 124 mm (4.9 inches) |
| Front tire | 3.00-21 |
| Rear tire | 4.60-18 |
| Front brakes | Single disc |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 124.0 kg (273.4 pounds) |
| Weight incl. oil, gas, etc | 139.0 kg (306.4 pounds) |
| Power/weight ratio | 0.3387 HP/kg |
| Seat height | 930 mm (36.6 inches) If adjustable, lowest setting. |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Color options | Silver/yellow |
| Starter | Electric |
| Electrical | Yuasa 12Volt 6.5Ah battery |
| Comments | CCM is an abbreviation of Clews Competition Motorcycles,a British motorcycle manufacturer founded when BSA´s Competition Department collapsed in 1971. |
