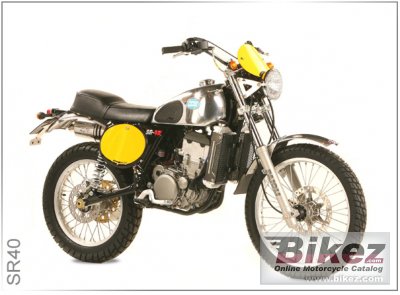

| CCM's profilation of this bike |
| The retro off road styling maintains the glory of those yester years, whilst the electric start confirms a specification to suit today´s demands. |
|
General information |
|
Model name
|
CCM SR-40 |
|
Model year
|
2009 |
|
Category
|
Classic |
|
Rating
|
3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
398.0 ccm (24.29 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
42.0 HP (30.7 kW)) |
|
Compression
|
12.2:1 |
|
Bore x stroke
|
90.0 x 62.6 mm (3.5 x 2.5 inches) |
|
Fuel system
|
Carburettor. Keihin FCR39 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic ignition (CDI) |
|
Lubrication system
|
Dry Sump |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel oil in frame |
|
Front suspension
|
Paioli conventional 40mm |
|
Front wheel travel
|
124 mm (4.9 inches) |
|
Rear suspension
|
Hagon twin shocks |
|
Rear wheel travel
|
124 mm (4.9 inches) |
|
Front brakes
|
Single disc |
|
Diameter
|
280 mm (11.0 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
124.0 kg (273.4 pounds) |
|
Power/weight ratio
|
0.3387 HP/kg |
|
Seat height
|
930 mm (36.6 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
