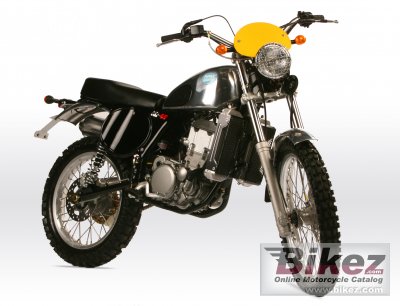

CCM SR-40 20082008 CCM SR-40 specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| Inspired by the classic scramblers of the late sixties and early seventies the SR-40 is a touch of the past with a modern twist. The retro off road styling maintains the glory of those yester years, whilst the electric start confirms a specification to suit today’s demands. |
| General information | |
|---|---|
| Model name | CCM SR-40 |
| Model year | 2008 |
| Category | Classic |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 398.0 ccm (24.29 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 42.0 HP (30.7 kW)) |
| Compression | 12.2:1 |
| Bore x stroke | 90.0 x 62.6 mm (3.5 x 2.5 inches) |
| Fuel system | Carburettor. Keihin FCR39 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition (CDI) |
| Lubrication system | Dry Sump |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Single disc |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 124.0 kg (273.4 pounds) |
| Power/weight ratio | 0.3387 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 08 CCM SR-40 discussion group or the general CCM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
