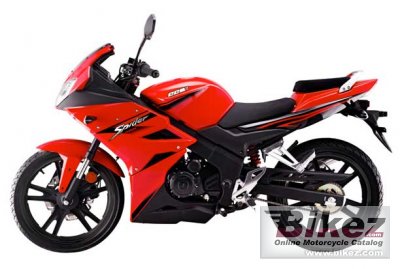

CCM Spider RL-125 20132013 CCM Spider RL-125 specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| With quality and reliability guaranteed, this smartly styled model come with the added assurance of parts back up service unmatched by its rivals. |
| General information | |
|---|---|
| Model name | CCM Spider RL-125 |
| Year of manufacture | 2013 |
| Type | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 10.1 HP (7.3 kW)) @ 8500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 56.5 x 49.5 mm (2.2 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | C.D.I. |
| Lubrication system | Wet Sump |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel Tubular. |
| Front suspension | Conventional fork |
| Rear suspension | Dual shock |
| Front tire | 2.50-21 |
| Rear tire | 3.00-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Wheels | Black 10-spoked front and rear wheel. Dunlop/CTS tyres. |
| Physical measures and capacities | |
| Dry weight | 125.0 kg (275.6 pounds) |
| Power/weight ratio | 0.0805 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Ground clearance | 220 mm (8.7 inches) |
| Wheelbase | 1390 mm (54.7 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Color options | Black, red |
| Starter | Electric |
| Comments | CCM is an abbreviation of Clews Competition Motorcycles,a British motorcycle manufacturer founded when BSA´s Competition Department collapsed in 1971. |
