General information |
|
Model name
|

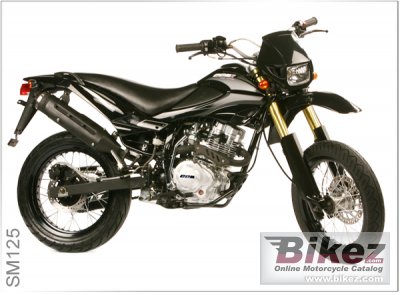

CCM SM 125 |
|
Year of manufacture
|
2009 |
|
Type
|
Super motard |
|
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
10.1 HP (7.3 kW)) @ 8500 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Wet Sump |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Conventional fork |
|
Rear suspension
|
Single shock with adjustable preload |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
126.0 kg (277.8 pounds) |
|
Power/weight ratio
|
0.0798 HP/kg |
|
Ground clearance
|
220 mm (8.7 inches) |
|
Wheelbase
|
1390 mm (54.7 inches) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Comments
|
Wheels 17´ front and 17´ rear. |
