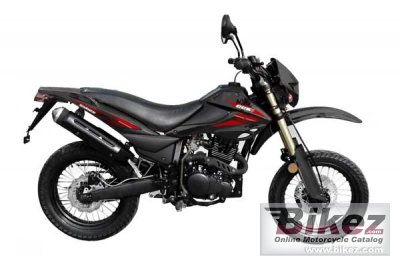

CCM SM125 20132013 CCM SM125 specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| With quality and reliability guaranteed, this smartly styled range comes with the added assurance of parts back up service unmatched by its rivals. |
| General information | |
|---|---|
| Motorcycle name | CCM SM125 |
| Model year | 2013 |
| Category | Super motard |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 10.0 HP (7.3 kW)) @ 8500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 56.5 x 49.5 mm (2.2 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | C.D.I. |
| Lubrication system | Wet Sump |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular welded steel frame. Welded steel swing arm. |
| Front suspension | Conventional fork |
| Rear suspension | Single shock with adjustable preload |
| Front tire | 2.50-17 |
| Rear tire | 2.50-17 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Wheels | Dunlop/CTS tyres. |
| Physical measures and capacities | |
| Dry weight | 130.0 kg (286.6 pounds) |
| Power/weight ratio | 0.0769 HP/kg |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Ground clearance | 220 mm (8.7 inches) |
| Wheelbase | 1390 mm (54.7 inches) |
| Fuel capacity | 8.80 litres (2.32 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Electrical | 12 Volt 7Ah battery |
| Comments | CCM is an abbreviation of Clews Competition Motorcycles,a British motorcycle manufacturer founded when BSA´s Competition Department collapsed in 1971. |
