| CCM's profilation of this bike |

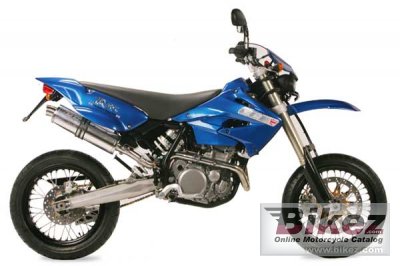

| Visually stunning and delivers excellent performance and handling, the R35 is one of the most exciting models in its class. The mixture of usable power, razor like steering and positive braking all adds up to a package that will not disappoint. |
|
General information |
|
Model name
|
CCM R35 |
|
Year
|
2013 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
398.0 ccm (24.29 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
40.0 HP (29.2 kW)) |
|
Bore x stroke
|
90.0 x 62.6 mm (3.5 x 2.5 inches) |
|
Fuel system
|
Carburettor. Keihin FCR39 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
520 heavy duty o-ring chain |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
WP 43mm upside down |
|
Rear suspension
|
WP PDS |
|
Front tire
|
120/70-17 |
|
Rear tire
|
150/70-17 |
|
Front brakes
|
Single disc. Brembo single piston |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Brembo single piston |
|
Diameter
|
260 mm (10.2 inches) |
|
Wheels
|
Spoke wheels front and rear |
|
Physical measures and capacities |
|
Dry weight
|
128.0 kg (282.2 pounds) |
|
Weight incl. oil, gas, etc
|
143.0 kg (315.3 pounds) |
|
Power/weight ratio
|
0.3125 HP/kg |
|
Seat height
|
890 mm (35.0 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Electric |
|
Comments
|
CCM is an abbreviation of Clews Competition Motorcycles,a British motorcycle manufacturer founded when BSA´s Competition Department collapsed in 1971. |
