| CCM's profilation of this bike |
| The note from that stunning big single engine, with twin carbs and twin sparks - tuned through a stainless steel exhaust - reminds you what it is that you find so enjoyable about riding a motorcycle. |
|
General information |
|
Model name
|

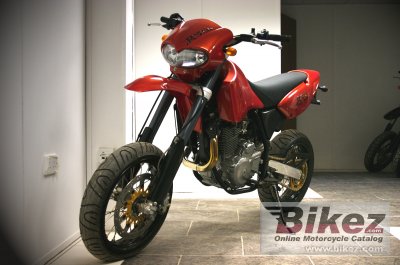

CCM R30 Supermoto |
|
Year
|
2007 |
|
Category
|
Super motard |
|
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
644.0 ccm (39.30 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
53.0 HP (38.7 kW)) @ 7000 RPM |
|
Torque
|
52.0 Nm (5.3 kgf-m or 38.4 ft.lbs) @ 5800 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
100.0 x 82.0 mm (3.9 x 3.2 inches) |
|
Fuel system
|
Carburettor. Mikuni BSR32, twin |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Electronic Ignition (CDI) |
|
Lubrication system
|
Wet Sump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-plate type |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
43mm diameter USD type, Lenght 910mm |
|
Rear suspension
|
Mono shock-.Lenght 340mm. Piggy-back reservoir. |
|
Front tire
|
120/60-17 |
|
Rear tire
|
120/60-17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
137.0 kg (302.0 pounds) |
|
Power/weight ratio
|
0.3869 HP/kg |
|
Seat height
|
865 mm (34.1 inches) If adjustable, lowest setting. |
|
Overall width
|
820 mm (32.3 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Lucifer Orange, Azure Blue, Tornado Red, Jet Black, Caspian Blue |
|
Starter
|
Electric |
|
Comments
|
Made by British Clews Competition Motorcycles. |
