| CCM's profilation of this bike |
| Fully road legal, the 700 delivers the extra power to deal with that little extra when it is needed. High and low box, 2 or 4 wheel drive, difflock combined with the extra power makes the 700 the top of the range. |
|
General information |
|
Model name
|

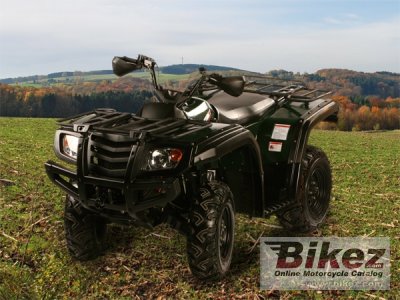

CCM LX 700 |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
660.0 ccm (40.27 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.1:1 |
|
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC. C.D.I |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double wishbone |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Double wishbone |
|
Rear wheel travel
|
225 mm (8.9 inches) |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1260 mm (49.6 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
