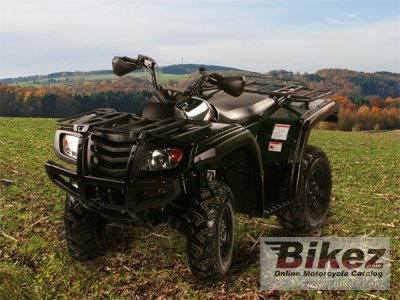

CCM LX700-4A ATV 20092009 CCM LX700-4A ATV specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| High and low box, 2 or 4 wheel drive, difflock combined with the extra power makes the 700 the top of the range. |
| General information | |
|---|---|
| Model | CCM LX700-4A ATV |
| Model year | 2009 |
| Category | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 660.0 ccm (40.27 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.1:1 |
| Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC. C.D.I |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double wishbone |
| Front wheel travel | 170 mm (6.7 inches) |
| Rear suspension | Double wishbone |
| Rear wheel travel | 225 mm (8.9 inches) |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 287.0 kg (632.7 pounds) |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1260 mm (49.6 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Reserve fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
