| CCM's profilation of this bike |
| Fully road legal, the 600cc version is the middle of the range engine its towing capabilities are capable of dealing with every day chores around the farm, boasting all the features of the 500 but with that little extra power. |
|
General information |
|
Motorcycle name
|

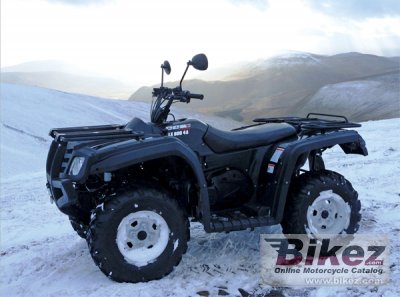

CCM LX600-4A ATV |
|
Year of manufacture
|
2009 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
608.0 ccm (37.10 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC. C.D.I |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double wishbone |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Double wishbone |
|
Rear wheel travel
|
225 mm (8.9 inches) |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
287.0 kg (632.7 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1260 mm (49.6 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Reserve fuel capacity
|
3.50 litres (0.92 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
