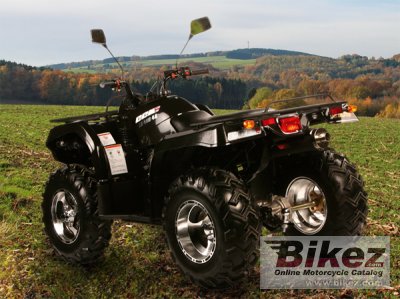

CCM LX350-4A ATV 20092009 CCM LX350-4A ATV specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| Fully road legal, the smaller of the CCM family of ATV has selectable 2 or 4 wheel drive and will make light work of carrying its rider around the estate or the horse paddock. |
| General information | |
|---|---|
| Model | CCM LX350-4A ATV |
| Year model | 2009 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 387.0 ccm (23.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 83.0 x 71.6 mm (3.3 x 2.8 inches) |
| Ignition | DC. C.D.I electronic ignition |
| Lubrication system | Internal Oil pump, 2.3 L |
| Cooling system | Oil & air |
| Gearbox | Automatic |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Twin shock absorber |
| Rear suspension | Single shock absorber |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Seat height | 827 mm (32.6 inches) If adjustable, lowest setting. |
| Ground clearance | 245 mm (9.6 inches) |
| Wheelbase | 1235 mm (48.6 inches) |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Other specifications | |
| Starter | Electric |
| Comments | Automatic transmission, F-R-N |
