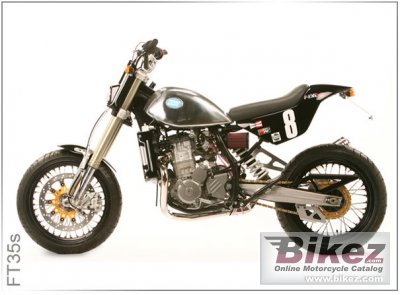

| CCM's profilation of this bike |
| This limited edition model, inspired by the original American flat track machines, was CCM’s famous retro bike and has received applause from across the globe. |
|
General information |
|
Model name
|
CCM FT35-s |
|
Year of manufacture
|
2010 |
|
Type
|
Allround |
|
Rating
|
3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
398.0 ccm (24.29 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
42.0 HP (30.7 kW)) |
|
Compression
|
12.2:1 |
|
Bore x stroke
|
90.0 x 62.6 mm (3.5 x 2.5 inches) |
|
Fuel system
|
Carburettor. Keihin FCR39 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Electronic (CDI) |
|
Lubrication system
|
Dry Sump |
|
Cooling system
|
Liquid |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel oil frame |
|
Front suspension
|
WP 43mm upside down |
|
Rear suspension
|
Nitro fully adjustable |
|
Front tire
|
120/70-17 |
|
Rear tire
|
150/70-17 |
|
Front brakes
|
Single disc. Brembo single piston |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Brembo single piston |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
126.0 kg (277.8 pounds) |
|
Weight incl. oil, gas, etc
|
139.0 kg (306.4 pounds) |
|
Power/weight ratio
|
0.3333 HP/kg |
|
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
10.00 litres (2.64 US gallons) |
|
Other specifications |
|
Color options
|
Silver |
|
Starter
|
Electric |
|
Comments
|
CCM is a British brand. |
