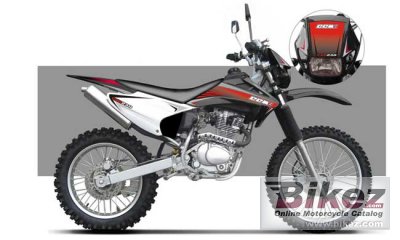

CCM C-XR230 20132013 CCM C-XR230 specifications, pictures, reviews and rating |
| CCM's profilation of this bike |
| The C-XR230 is excellent value for money, offering an enduro, supermoto and entry level MX machine in one punchy package, which comes with the luxury of an electric start as standard. The CXR230 is now E3 Homologated. |
| General information | |
|---|---|
| Model | CCM C-XR230 |
| Year | 2013 |
| Category | Enduro / offroad |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 230.0 ccm (14.03 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 18.0 HP (13.1 kW)) @ 8500 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 67.0 x 65.0 mm (2.6 x 2.6 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | C.D.I. |
| Lubrication system | Wet Sump |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Driveline | 520 chain |
| Emission details | Euro 3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular welded steel. Cast / welded aluminium swing arm. |
| Front suspension | Conventional fork, 40mm |
| Rear suspension | Single shock - adjustable preload |
| Front tire | 2.50-21 |
| Rear tire | 3.00-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Wheels | Spoked. Dunlop/CTS tyres |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Weight incl. oil, gas, etc | 129.0 kg (284.4 pounds) |
| Power/weight ratio | 0.1525 HP/kg |
| Seat height | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Ground clearance | 340 mm (13.4 inches) |
| Wheelbase | 1350 mm (53.1 inches) |
| Fuel capacity | 8.80 litres (2.32 US gallons) |
| Other specifications | |
| Color options | White/red/grey |
| Starter | Electric |
| Electrical | Battery 12V 7Ah |
| Comments | CCM is an abbreviation of Clews Competition Motorcycles,a British motorcycle manufacturer founded when BSA´s Competition Department collapsed in 1971. |
